ESP Modules and Interfaces

Hochiki CHQ-SUB: Sub-Assembly housing for CHQ-MRC2(SCI).

Model CHQ-POM is a powered-output module designed to supply 24 V dc at various, user-selectable current levels from 2 to 32 mA (in increments of 2 mA).

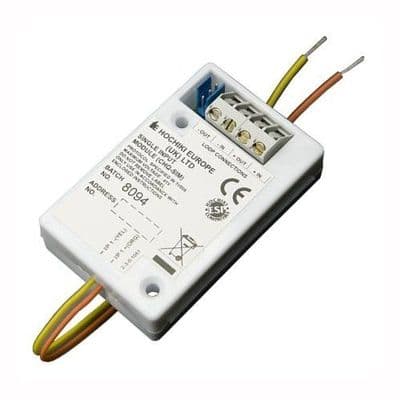

The CHQ-SIM has been designed to allow a single monitored input to be connected to the ESP loop.  This provides a compact, low-cost option where the installation of the larger CHQ Range of Modules might be difficult.

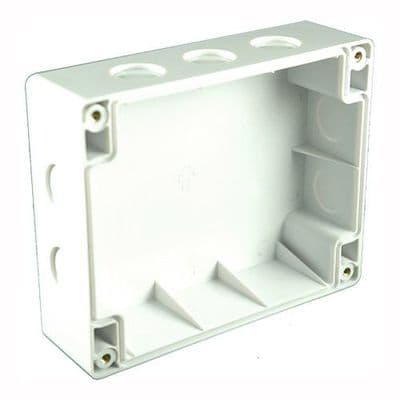

The CHQ-BACKBOX is designed for installations where the CHQ Range of Modules - CHQ-DIM(SCI), CHQ-SZM(SCI), CHQ-DZM(SCI), CHQ-DSC(SCI), CHQ-MRC(SCI), CHQ-DRC(SCI) and CHQ-PCM - require mounting within a glanded enclosure.

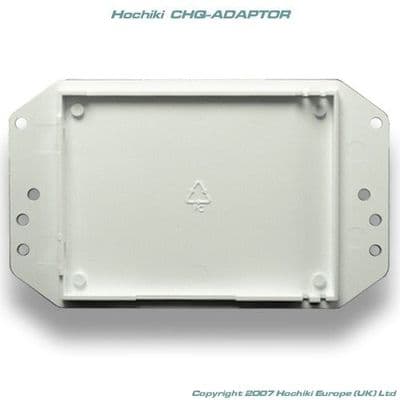

The CHQ-ADAPTOR is designed to allow the “Smart-Fix“ range of CHQ Modules to be housed in existing enclosures originally designed for the first generation CHQ-OEM Modules by modifying the ‘footprint’ of the unit.

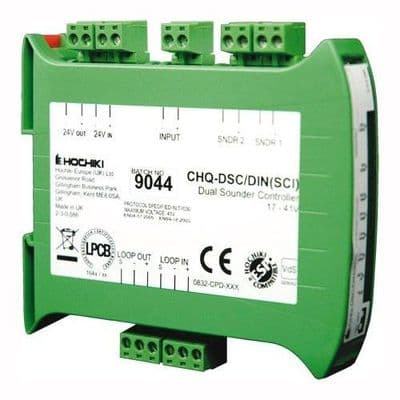

Model CHQ-DSC2/DIN(SCI) is a Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring.

Model CHQ-DZM/DIN(SCI)-IS is Dual Zone Module which is fully compatible with Hochiki's ESP analogue addressable protocol and I.S. equipment.  It is supplied as a DIN Rail mountable module, a boxed version is also available.  Addressing is achieved via simple DIL switches.

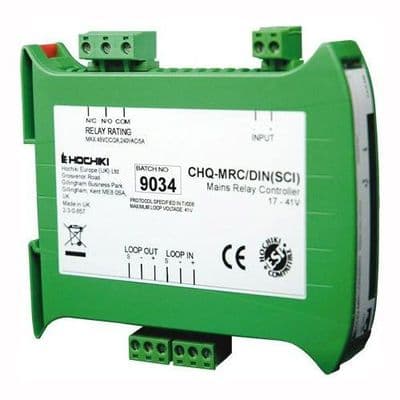

Model CHQ-MRC2/DIN(SCI) is a Single Input/Output Module, which provides a single, mains-rated relay output  for the control of such devices as dampers, extractors or plant and equipment shutdown.  The monitored input can be used for local power supply fault monitoring or as a general-purpose input.

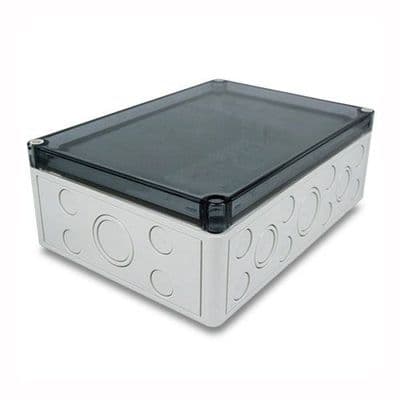

Model SMB-1 is from a range of IP66 rated, grey (RAL7035) enclosures, designed for use with the Hochiki range of CHQ Modules.  The SMB-1 features a selection of metric knock-outs and is supplied with a transparent black lid as standard.

Hochiki SMB-1(LID): Large Module Enclosure Opaque Lid (Grey)

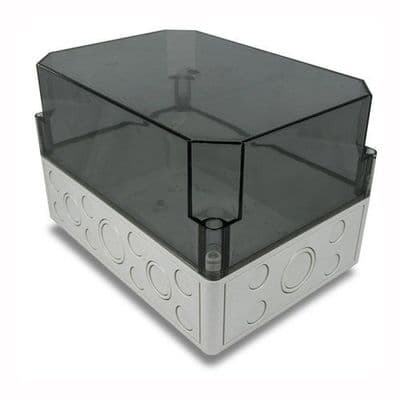

Model SMB-2 is an IP66 rated, grey (RAL7035) enclosure designed for use with the Hochiki range of DIN Modules.  The SMB-2 features a selection of metric knock-outs and is supplied with a transparent black lid as standard.  A grey opaque lid, SMB-2(LID), is also available (sold separately).  The unit is supplied with a DIN Rail section (plus fixings) and will accept up to six Hochiki DIN Rail Modules, side-by-side.

Hochiki SMB-2(LID): Large Din Module Enclosure Opaque Lid (Grey)

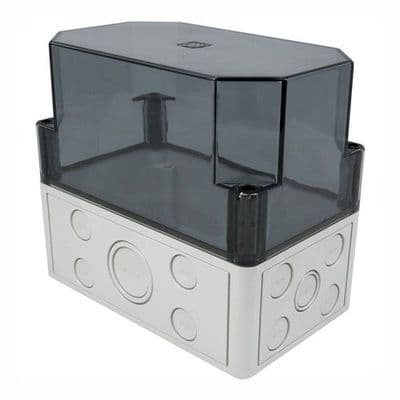

Model SMB-3 is from a range of IP66 rated, grey (RAL7035) enclosures, designed for use with the Hochiki range of DIN Modules.  The SMB-3 features a selection of metric knock-outs and is supplied with a transparent black lid as standard; an opaque lid is also available (sold separately).

Hochiki SMB-3(LID): Small Din Module Enclosure Opaque Lid (Grey)
