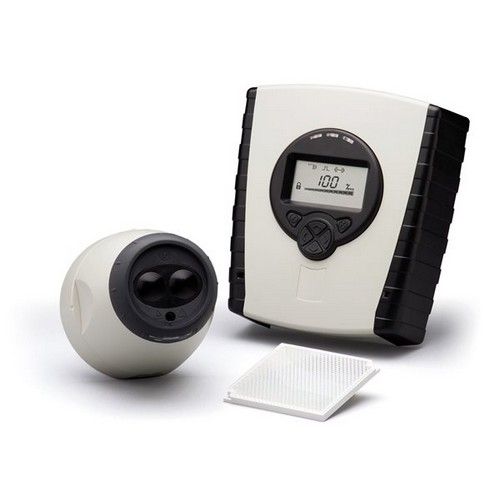

Intelligent Auto-Aligning Beam Detector

The Intelligent Auto-Aligning Beam Detector combines a transmitter/receiver in the same detector head with an automatic alignment motor. This combination with integrated addressability allows for quick and simple installation. The Intelligent Auto-Aligning Beam Detector automatically compensates for environmental effects on the beam signal, keeping the unit in the best possible working order. This is achieved through the combination of software (automatic gain control) and motorised realignment of the beam.

The detector is factory set to a beam obscuration of 35% which is the best setting for most factories and warehouses. The setting can be changed to 25% for offices and clean areas such as theatres or to 50% for hostile areas such as mills or foundries. The detector reports a pre-alarm (analogue value 48) at approximately 75% of the alarm threshold.

The detector compensates automatically for gradual contamination of the lenses in order to avoid false alarms. The detector is non-latching and resets 30 seconds after an alarm event ceases and in 3 seconds after the removal of a fault.

Key Features

• Loop Powered and compatible with XP95, Discovery and CoreProtocol
• Incorporates a bi directional short-circuit isolator
• Automatic drift compensation
• Automatic reset
• Ground level Controller
• Automatic alignment compensation for building movement
• Laser assisted alignment for quick installation
• Allows for 2 detector heads per controller
• Up to 100m range
• Pre-alarm threshold
• EN 54-12 and EN 54-17 certified

Specification

Warranty                                                10 year

Operating Distance                              8 to 100m

Optical Wave Length                            850nm

Supply Voltage (Vmin-Vmax)              17 to 35V dc

Humidity                                                 0% to 93% (no condensation or icing)

Operating Temperature                       -10 to 55°C

IP Rating Value                                      IP54

Storage Temperature                           -40 to 85°C

Standards                                               EN 54-12 and EN54-17

Approvals                                                CPR and VdS

Colour                                                      Grey

Materials Housing                                  Polycarbonate

Dimensions: Controller With Base     Height 230mm / Width 202mm

                        Detector With Base        Height 131mm / Width 134mm

                        Universal Bracket           Height 230mm / Width 202mm

                        Reflector                          Height 100mm / Width 100mm

Weights:        Controller With Base     1000g

                        Detector With Base        537g

                        Reflector                          100g

Details

• Model: SA7100-100
• Shipping Weight: 2000g
