Description

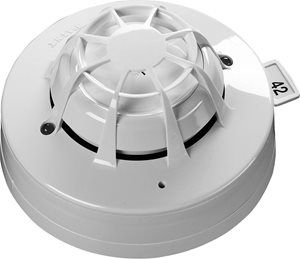

58000-700APO - Apollo Discovery Multisensor Detector, No Base
The Discovery Multisensor Detector comprises optical smoke and thermistor temperature sensors which give both a combined signal as well as a separate heat signal for improved false alarm management.
Key Features
- Ideal for a wide range of applications
- Enhanced false alarm management
- Recommended, in specific modes, for hotel bedrooms and hospital wards
- Unaffected by wind or atmospheric pressure
- Well-suited to sensitive environments
- Five response modes
- Heat only and optical only options
- Remote test feature
Specification
Applications Bedrooms, Hospitals, Hotels, Medium to large buildings, Offices, University campuses, Car parks/loading bays, Clean rooms, Warehouses
Fire Type Fast and slow burning fires
Warranty 10 year
Analogue Value 23 Nominal (- 0 / + 4 Tolerance)
Alarm Level Analogue Value 55
Chamber Type Chevron
Protocol Voltage 5 to 9V peak to peak
Power-Up Surge Current 1mA
Maximum Power-Up Time 10 seconds
Quiescent Current 470μA
Supply Voltage (Vmin-Vmax) 17 to 28V dc
Terminal Functions L2 +L2 Loop in & out positive
Terminal Functions L1 In +L1 in
Terminal Functions L1 Out +L1 out
Polarity L1 & L2 are polarity insensitive
Alarm Current (At 24 Volts) 3.5mA
Humidity 0% to 95% (no condensation or icing)
Operating Temperature -40 to 70°C
IP Rating Value IP44
Standards EN 54-5 EN 54-7 BS EN 61000-6-3: 2007+A1: 2011 BS EN 50130-4:2011+A1: 2014
Approvals FG, SBSC, BOSEC, CCMG, CPR, LPCB, VdS
SIL Rating 2
Weight 105g
Colour White
Materials Housing Polycarbonate
Materials Terminals Nickel plated stainless steel
Product Height (W/o Base) 50mm
Product Length 50mm
Product Diameter 100mm
Detection Principle Photo-electric light scattering. Temperature sensitive resistance.
Sensor Configuration Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Details
- Model: 58000-700
- Shipping Weight: 105g
