Description

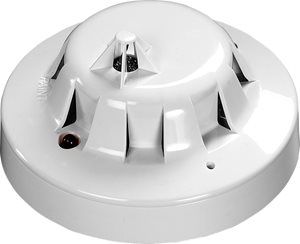

58000-305APO - Apollo Discovery Carbon Monoxide/Heat Multisensor Detector, No Base

The Discovery CO/Heat Multisensor Detector contains a CO detection cell and a thermistor temperature sensor whose outputs are combined to give the final analogue value. The way in which the signals from the two sensors are combined depends on the response mode selected. The CO/Heat Multisensor detects the presence of carbon monoxide or heat or a combination of both.

The Multisensor construction is similar to that of a CO detector but uses a different lid in order to expose the thermistor to the surrounding air.

The signals from the CO sensing cell and the thermistor are independent and represent the amount of CO or the temperature present in the vicinity of the detector.

When the detector is used in heat only mode (Mode 5) it operates as an A1R rate-of-rise heat detector with a static threshold of 58°C.

Key Features

• Responds to smouldering and flaming fires
• Less susceptible to false alarms caused by steam and dust
• Five response modes
• Remote test feature

Specification

Applications                               Bedrooms, Hospitals, Hotels, Offices, University campuses, Warehouses

Fire Type                                     Fast and slow burning fires

Warranty                                     5 year

Analogue Value Nominal        25

Tolerance                                   +/- 2

Alarm Level Analogue Value   55

Chamber Type                           Chevron

Protocol Voltage                        5 to 9V peak to peak

Power-Up Surge Current         1mA

Maximum Power-Up Time       10 seconds

Status Indicator - Alarm            Red

Quiescent Current                     400Μa

Supply Voltage                           17 to 28V dc

Terminal Functions L2             +L2 Loop in & out positive

Terminal Functions L1 In         -L1 in Loop (isolated) negative

Terminal Functions +R            +R Remote indicator positive connection

Terminal Functions -R              -R Remote indicator negative connection

Polarity                                         L1 & L2 are polarity sensitive

Alarm Current (At 24 Volts)      3.5mA

Humidity                                      15% to 90% (no condensation or icing)

Operating Temperature            0 to 50°C

IP Rating Value                           IP44

Storage Temperature                10 to 30°C

Standards                                    EN 54-5                                                                                                                                                                                                                                  BS EN 61000-6-3: 2007+A1: 2011                                                                                                                                                                                  BS EN 50130-4:2011+A1: 2014

Approvals                                     CCMG, CPD, LPCB, VNIIPO, VdS

Weight                                          105g

Colour                                           White

Materials - Housing                    Polycarbonate

Materials - Terminals                 Nickel plated stainless steel

Product Length                            54mm

Product Diameter                        100mm

Detection Principle                      Temperature sensitive monoxide level and Ambient carbon monoxide level

Details

• Model: 58000-305
• Shipping Weight: 105g
